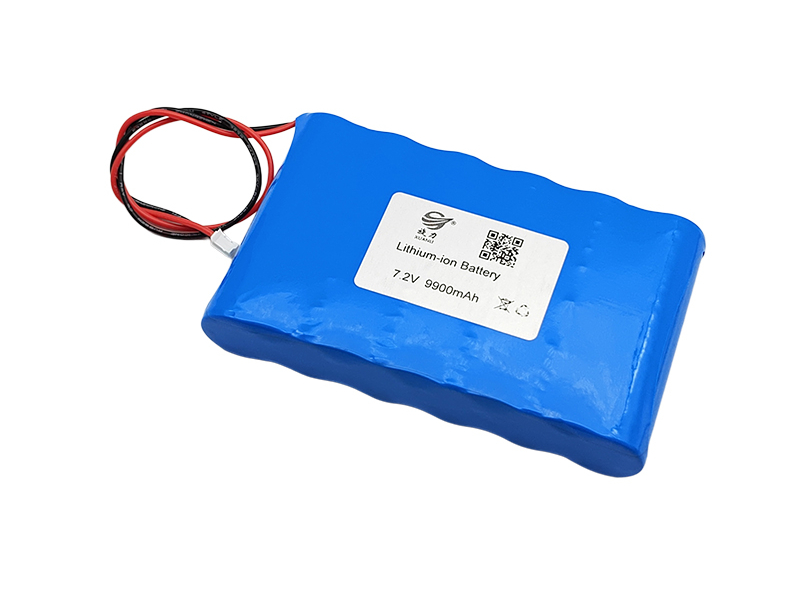

7.2V cylindrical lithium battery product model: XL 18650 7.2V 9900mAh
Technical parameters of 7.2V cylindrical lithium battery (Specific design according to customer requirements - voltage/capacity/size/circuit)
Single battery model: 18650
·Single cell battery voltage: 3.6V
·Nominal voltage of the battery pack after combination: 7.2V
·Single cell battery capacity: 3.3Ah
·Combination method: 2 series 3 parallel
·Voltage range of the combined battery after combination: 5.0~8.4V
·Capacity of the combined battery after combination: 9.9Ah
·Battery pack power: 71.28Wh
·Battery pack size: 20*71*113mm
·Maximum discharge current: <9.9A
·Instantaneous discharge current: 19.8~29.7A
·Maximum charging current: 0.2~0.5C
·Number of charge and discharge cycles: >500 times
·Main chips: (Seiko, TI)
7.2V cylindrical lithium battery
· Conform to relevant national or international battery standards
· All battery products are tested before leaving the factory
